H-Type Hydraulic Press

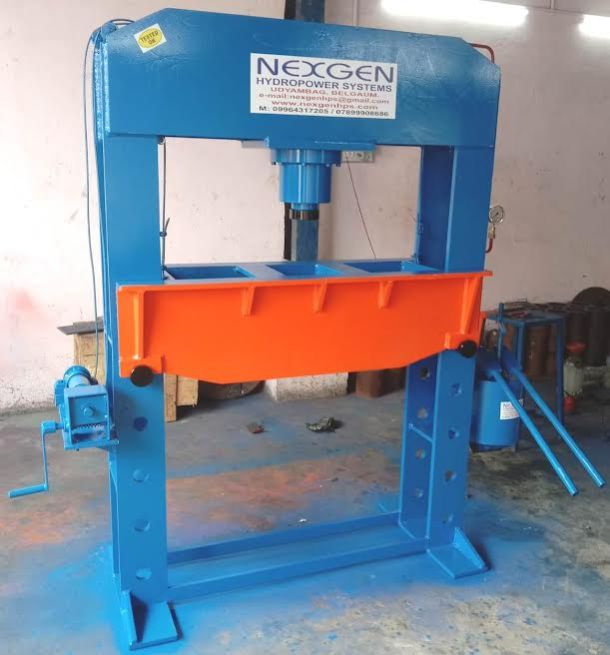

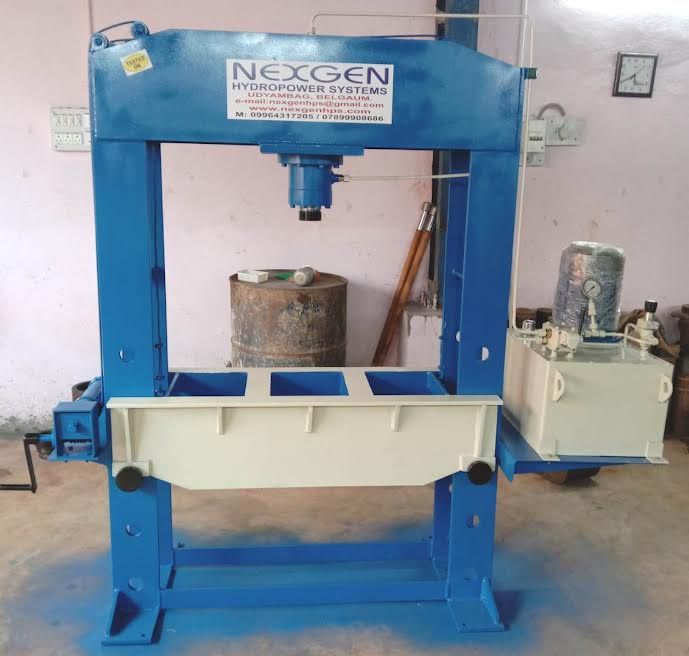

H-Type Hydraulic Pres 01 H-Type Hydraulic Pres 02 H-Type Hydraulic Pres 03

Our efficient H-Type Hydraulic Press has Steel welded construction that offers minimum deflection of the frame. H-Type Hydraulic Press, offered by us, is compact with hydraulic power pack operated for multi productivity and also with electric push button operated. H-Type Hydraulic Press, manufactured by us, is easy to install, economical, and operates with high speed. H-Type Hydraulic Press is being used for general applications.

Capacities : 5 tonne to 200 tonnes

Standard Features :

  • Hand lever operation
  • Rapid ram return
  • Adjustable table with self locking hoist
  • Pressure gauge


Optional Equipment :

  • Hand pump
  • 2 V-blocks & table plates
  • Electric push button operated


Specifications

Main Capacity C In Tonnes
Day Light B MIN MM
B MAX MM
Table Size DxE MM
Working Height A MM
Width Between Column F MM
Stroke S MM
Working Pressure P KG/CM SQ.
Speeds - -
Approach A MM/SEC
Pressing P MM/SEC
Return R MM/SEC
