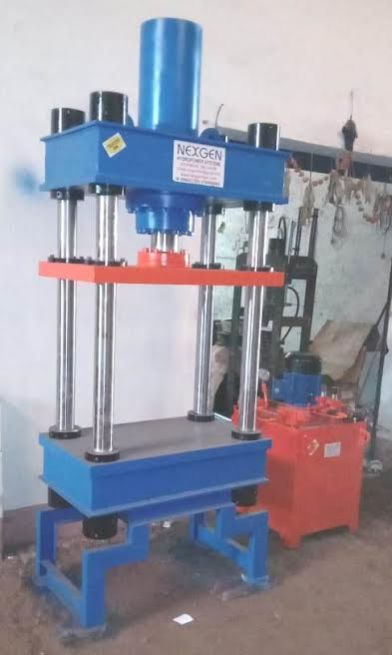

Pillar Type Hydraulic Press


Pillar Type Hydraulic Press

Having rigid Steel welded construction, our Pillar Type Hydraulic Press offers minimum deflection of the frame. Pillar Type Hydraulic Press is compact with hydraulic power pack operated for multi productivity and also with electric push button operated. In Pillar Type Hydraulic Press, the operator has access from three sides of the press. The different pillars also act as bearing rods for the moving platen. In addition, they are used for deep drawing application and are ideally used for trans molding, vertical injection molding, and rubber molding.

Capacity : 5 - 300 tonnes

Optional Equipment :

  • Electric push button operated
  • Hand pump
  • Photo electronic sensing device for safety
  • Cushion or knock out cylinder
  • Load cell


Industries Catered To :

  • Process plants
  • Steel plants
  • Rubber industries
  • Automotive units
  • Other mechanical industries


Features :

  • Hand lever operation
  • Rapid ram return
  • Electric push button /PLC operated
  • Pressure gauge
  • Seals : Hallite/Parker/Spareage etc
  • Cylinder material : En8/En9/ En19
  • Structure : Compact and fully stress relieved
  • Hydraulic Valves/Pumps : Rexroth/Polyhydron/ Yuken/Vickers etc.
  • With one year warranty


Specifications

Main Capacity C In Tonnes
Day Light B MM
Table Size DxE MM
T-slot Size T MM
Working Height A MM
Stroke S MM
Working Pressure P KG/CM SQ.
Speeds
Approach A MM/SEC
Pressing P MM/SEC
Return R MM/SEC
